G190ETN01.8

Size:

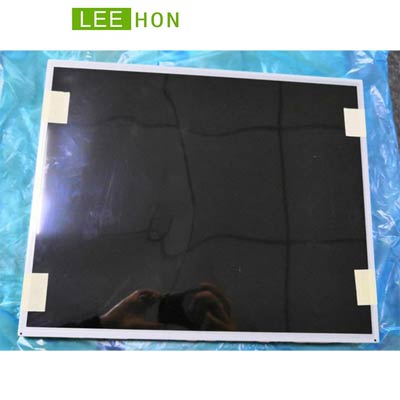

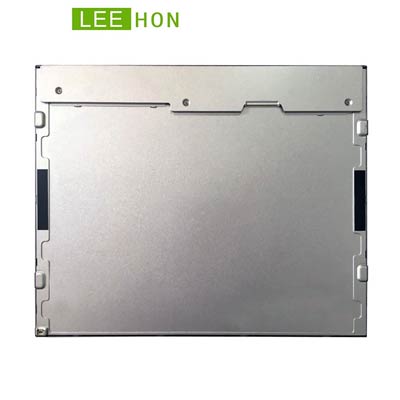

AUO 19 inch TFT LCD Panel G190ETN01.8 with 1280x1024 SXGA and 800 nits High Brightness

  • G190ETN01.8
  • Module No:G190ETN01.8
  • Brand:AUO
  • Size:19 inch
  • Resolution:1280(RGB)×1024 , SXGA
  • Brightness:800 cd/m²
  • Viewing angle:85/85/80/80 (Typ.)
  • Interface:LVDS (2 ch, 8-bit) , 30 pins
  • CR:1000:1
  • Operating Temp.: -30 ~ +70 (°C)
  • AUO 19 inch tft lcd panel G190ETN01.8 with 1280x1024 SXGA resolution , brightness 800 cd/m².This lcd display is working temperature is -30 ~ +70 (°C) and its storage temperature is  - 30 ~ +70 (°C).Based on its white LED backlight.This model is recommended for industrial use and outdoor highlight.
    Matched Resistive touch and Capacitive touch available.also we have matched HDMI driver board and LVDS cables.

    Industrial AUO 19 inch 1280*1024 SXGA TFT LCD Panel For outdoor highlightG190ETN01.8 with high brightness 800 nits and 30 pin LVDS cables.


    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China
    mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class),
    PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold
    very well in North&South America, Western Europe and Southeast Asia.

    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
