TCG084VGLACANN-AN00-SA

Size：

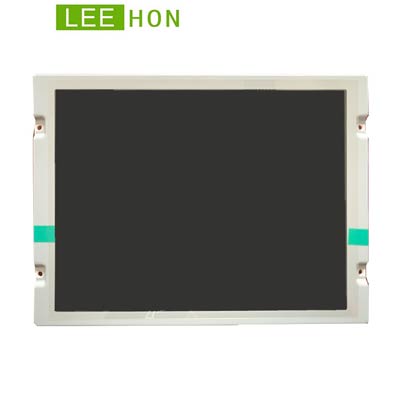

Kyocera 8.4 inch RGB TFT LCD Screen TCG084VGLACANN-AN00-SA with 640x480

  • TCG084VGLACANN-AN00-SA
  • Module No：TCG084VGLACANN-AN00-SA
  • Brand：Kyocera
  • Size：8.4 inch
  • Resolution：640(RGB)×480,VGA
  • Brightness：550 cd/m²
  • Viewing angle：70/70/60/70 (Typ.)
  • Interface：Parallel RGB (1 ch, 6-bit), 40 pins
  • CR：500:1
  • Operating Temp.: -20 ~ 70 °C

    • Kyocera 8.4 inch tft lcd panel TCG084VGLACANN-AN00-SA with 640x480 VGA resolution , brightness 550 cd/m².This lcd display is working temperature is -20~ +70(° C) and its storage temperature is  - 30~ +80(° C).Based on its white LED backlight.This model is recommended for industrial use.
    Matched Resistive touch and Capacitive touch available.also we have matched HDMI driver board and LVDS cables.
    Industrial Kyocera 8.4 inch TFT LCD Screen TCG084VGLACANN-AN00-SA with 640x480, 550 nits and Customizable controller board.


    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
