TCG075VGLEAANN-GN00

Size：

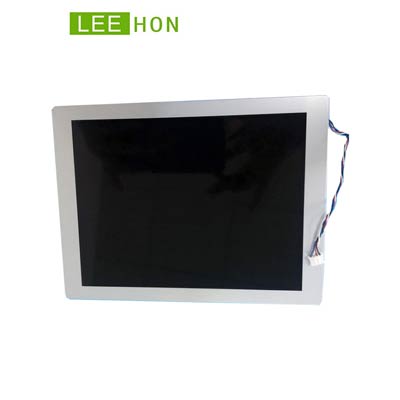

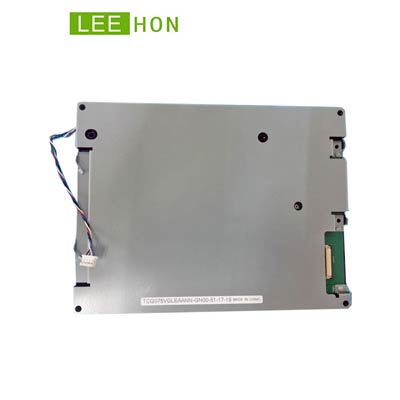

Kyoceera 7.5 inch TFT LCD Screen TCG075VGLEAANN-GN00 with 640x480 and 400 nits

  • TCG075VGLEAANN-GN00
  • Module No：TCG075VGLEAANN-GN00
  • Brand：Kyocera
  • Size：7.5 inch
  • Resolution：640(RGB)×480, VGA
  • Brightness：400 cd/m²
  • Viewing angle：80/80/80/80 (Typ.)
  • Interface：Parallel RGB (1 ch, 6-bit) , 33 pins
  • CR：500:1
  • Operating Temp.: -20 ~ +70(°C)

    • Kyocera 7.5 inch tft lcd panel TCG075VGLEAANN-GN00 with 640x480 resolution , brightness 400 cd/m².This lcd display is working temperature is -20~ +70(° C) and its storage temperature is  - 30~ +80(° C).Based on its white LED backlight.This model is recommended for industrial use.
    Matched Resistive touch and Capacitive touch available.also we have matched HDMI driver board and LVDS cables.
    Kyocera 7.5 inch TFT LCD Modules TCG075VGLEAANN-GN00 with 640x480, 400 nits and customizable touch screen.


    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
