G190EG02 V104

Size:

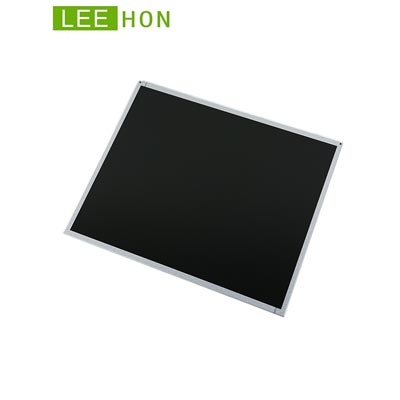

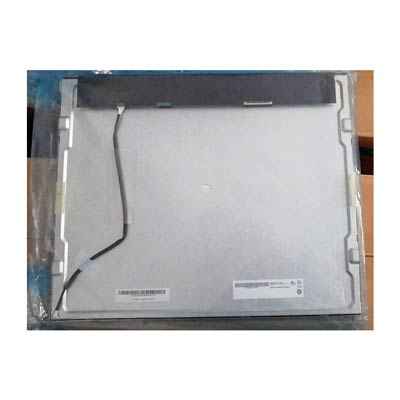

AUO 19 Inch 1280x1024 LCD IPS Panel TFT LVDS Display For Medical Imaging G190EG02 V104

  • G190EG02 V104
  • Module No:G190EG02 V104
  • Brand:AUO
  • Size:19 inch
  • Resolution:1280(RGB)×1024 , SXGA
  • Brightness:350 cd/m²
  • Viewing angle:89/89/89/89 (Typ.)
  • Interface:LVDS (2 ch, 8-bit) , 30 pins
  • CR:2000:1
  • Operating Temp.: -15 ~ +70 (°C)
  • AUO 19 inch tft lcd ips panel G190EG02 V104 with 1280(RGB)x1024 SXGA resolution, brightness 350 cd/m². This lcd display's working temperature is -15 ~ +70 (°C) and it's storage temperature is -20 ~ +70 (°C). Based on it's white LED backlight. This model is recommended for industrial use.
    Matched resistive touch and capacitive touch available. Also we have matched HDMI driver board and LVDS cables.
    Industrial 19 Inch 1280*1024 SXGA LCD Panel Original AUO 19" TFT IPS Display G190EG02 V104 with Full viewing, 350nits an d 30 pins LVDS.



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China
    mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class),
    PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold
    very well in North&South America, Western Europe and Southeast Asia.

    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
