G190EAN01.5

Size:

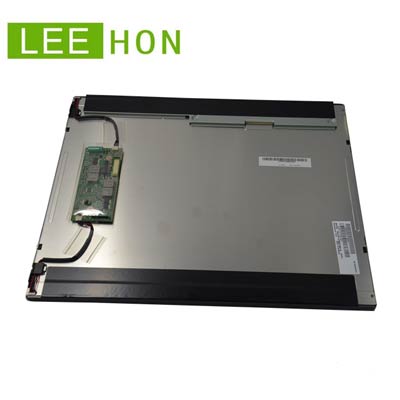

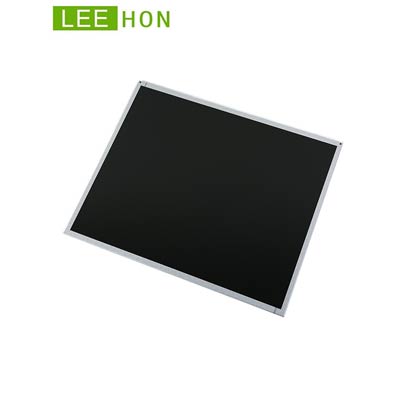

AUO 19 Inch 1280x1024 LCD LVDS Panel TFT High Brightness IPS Display 700nits G190EAN01.5

  • G190EAN01.5
  • Module No:G190EAN01.5
  • Brand:AUO
  • Size:19 inch
  • Resolution:1280(RGB)×1024 , SXGA
  • Brightness:700 cd/m²
  • Viewing angle:89/89/89/89 (Typ.)
  • Interface:LVDS (2 ch, 8-bit) , 30 pins
  • CR:1000:1 (Typ.)
  • Operating Temp.: 0 ~ +50 (℃)
  • AUO 19 inch tft lcd ips panel G190EAN01.5 with 1280(RGB)x1024 resolution, brightness 700 cd/m². This lcd display's working temperature is 0 ~ +50 (°C) and it's storage temperature is -20 ~ +60 (°C). Based on it's white LED backlight. This model is recommended for industrial and outdoor highlight use.
    Matched resistive touch and capacitive touch available. Also we have matched HDMI driver board and LVDS cables.

    Industrial 19 Inch 1280*1024 SXGA LCD Panel Original AUO 19" TFT IPS Display G190EAN01.5 with 700nits High brightness, Full Viewing and 30 pins LVDS.


    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China
    mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class),
    PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold
    very well in North&South America, Western Europe and Southeast Asia.

    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
