G170HAN01.0

Size:

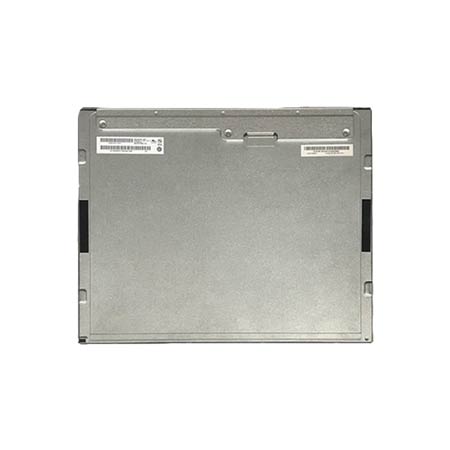

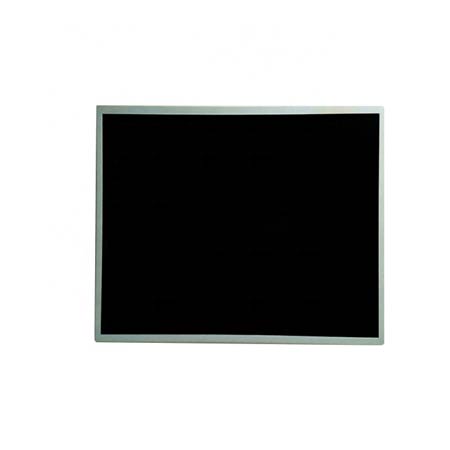

AUO 17 inch IPS square lcd display G170HAN01.0 with 1920*1920 and backlight 50000k houors

  • G170HAN01.0
  • Module No:G170HAN01.0
  • Brand:AUO
  • Size:17 inch
  • Resolution:1920(RGB)×1920
  • Brightness:600 cd/m²
  • Viewing angle:89/89/89/89 (Typ.)
  • Interface:eDP (4 Lanes) , eDP1.3 ,40 pins
  • CR:1000:1
  • Operating Temp.: -20 ~ 60(°C)
  • AUO 17 inch tft lcd panel G170HAN01.0 with 1920*1920 resolution , brightness 600 cd/m².This lcd display is working temperature is -20~ 60( ° C) and its storage temperature is  - 20~ 70(° C). Based on its white LED backlight.This model is recommended for industrial use and outdoor highlight. Matched Resistive touch and Capacitive touch available.also we have matched HDMI driver board and LVDS cables.
    17 inch 1920*1920 IPS display 600 nits square LCD panel G170HAN01.0 for outdoor.


    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
