G150XTN03.7

Size:

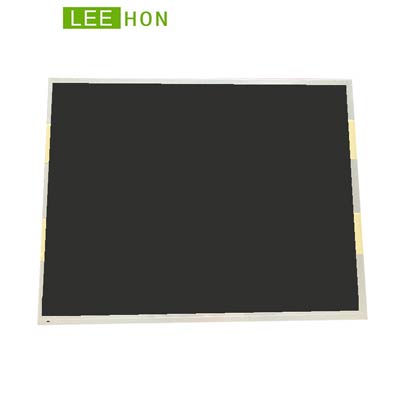

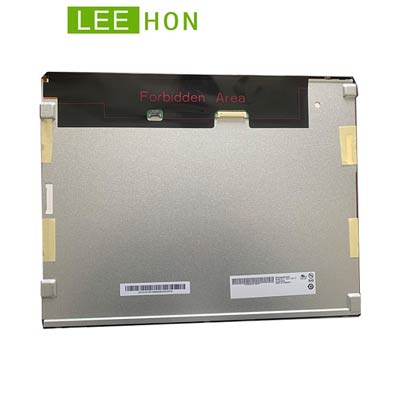

AUO 15 inch 1024*768 tft lcd panel G150XTN03.7 with interface eDP 30 pins

  • G150XTN03.7
  • Module No:G150XTN03.7
  • Brand:AUO
  • Size:15 inch
  • Resolution:1024(RGB)×768, XGA
  • Brightness:250 cd/m²
  • Viewing angle:45/45/20/40 (Typ.)
  • Interface:eDP (1 Lane) , eDP1.2 , 30 pins
  • CR:500:1
  • Operating Temp.: 0 ~ 65(°C)
  • AUO 15 inch tft lcd panel G150XTN03.7 with 1024*768 resolution , brightness 250 cd/m².This lcd display is working temperature is 0~ 65 ° C and its storage temperature is  - 20~ 65(° C).Based on its white LED backlight.This model is recommended for industrial use and outdoor highlight.
    Matched Resistive touch and Capacitive touch available.also we have matched HDMI driver board and LVDS cables.
    Industrial AUO 15 inch display G150XTN03.7 1024x768 interface eDP 30 pins tft lcd module with HD-MI board.


    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
