G070VTT01.0

Size:

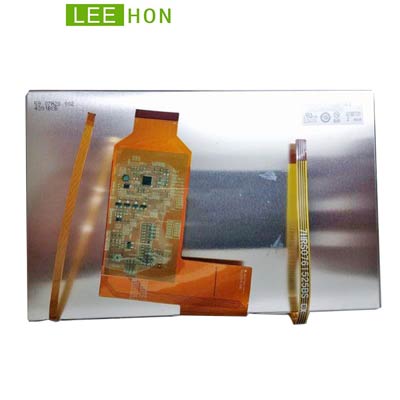

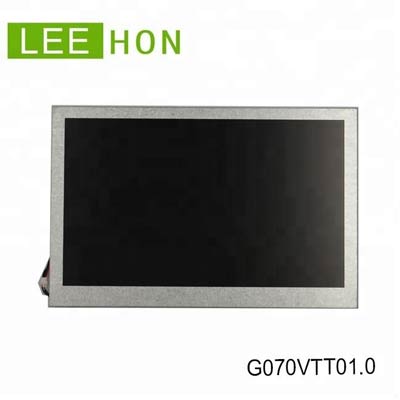

AUO 7 Inch 800x480 LCD Panel RGB Screen For Industry G070VTT01.0 380nits and Resistive touch

  • G070VTT01.0
  • Module No:G070VTT01.0
  • Brand:AUO
  • Size:7 inch
  • Resolution:800(RGB)×480 , WVGA
  • Brightness:380 cd/m²
  • Viewing angle:65/65/50/60 (Typ.)
  • Interface:Parallel RGB (1 ch, 6-bit) , FPC , 40 pins
  • CR:500:1 (Typ.)
  • Operating Temp.: -20 ~ +70 (°C)
  • AUO 7 inch tft lcd panel G070VTN01.0 with 800(RGB)x480 WVGA resolution, brightness 380 cd/m². This lcd display's working temperature is -20 ~ +70 (°C)  and it's storage temperature is -30 ~ +80 (°C). Based on it's white LED backlight. This model is recommended for industrial use.
    Matched resistive touch and capacitive touch available. Also we have matched HDMI driver board.
    Industrial 7 Inch 800*4800 WVGA LCD Panel Original AUO TFT LCD RGB Screen G070VTN01.0 with 380nits and 4-wire resistive touch screen.



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China
    mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class),
    PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold
    very well in North&South America, Western Europe and Southeast Asia.

    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
