EV116FHM-N10

Size:

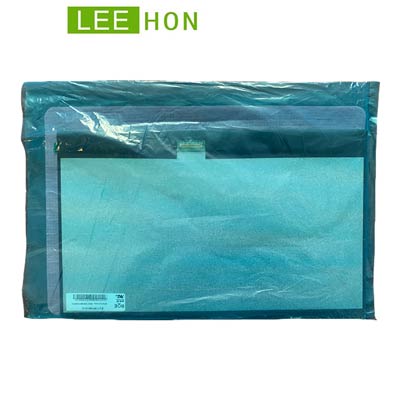

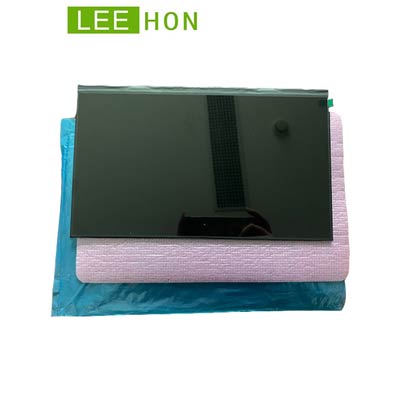

BOE 11.6inch FHD 1920*1080 resolution TFT LCD screen EV116FHM-N10 with IPS and high contrast

  • EV116FHM-N10
  • Module No:EV116FHM-N10
  • Brand:BOE
  • Size:11.6 inch
  • Resolution:1920*1080
  • Brightness:400 cd/m²
  • Viewing angle:85/85/85/85
  • Interface:eDP (2 Lanes) , 30 pins
  • CR:1000:1
  • Operating Temp.: -20 ~ 70(°C)
  • BOE 11.6 inch IPS tft lcd panel EV116FHM-N10 with 1920*1080(FHD) resolution , brightness 400 cd/m².This lcd display is working temperature is -20~ 70 ° C and its storage temperature is  - 30~ 80(° C).Based on its white LED backlight.This model is recommended for industrial use.
    Matched Resistive touch and Capacitive touch available.also we have matched HDMI driver board and LVDS cables.
    Industrial IPS BOE display EV116FHM-N10 11.6 inch FHD 1920*1080 tft lcd screen with eDP and customized touch screen.


    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
    New and original quality of BOE, quality warranty for 12 months after shipdate.Matched LED driver and touch screen for your options.
