DV185WHM-NM1

Size:

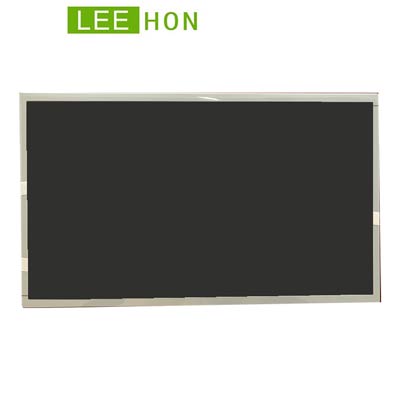

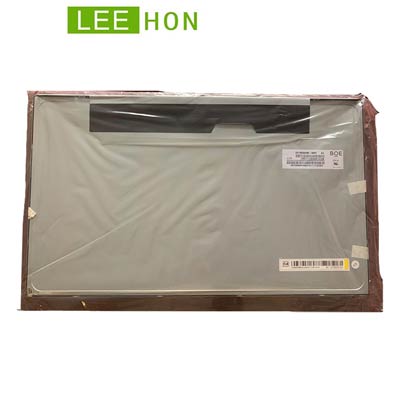

BOE IPS 18.5 inch lcd panel resolution 1366*768 and LVDS DV185WHM-NM1 for digital signage

  • DV185WHM-NM1
  • Module No:DV185WHM-NM1
  • Brand:BOE
  • Size:18.5 inch
  • Resolution:1366*768
  • Brightness:250 cd/m²
  • Viewing angle:89/89/89/89(typ.)
  • Interface:LVDS (1 ch, 8-bit) , 30 pins
  • CR:1000:1
  • Operating Temp.: 0 ~ 50(°C)
  • BOE 18.5 inch tft lcd panel DV185WHM-NM1 with 1366*768 resolution , brightness 250 cd/m².This lcd display is working temperature is - 0~ 50 ° C and its storage temperature is - 20~ 60 (° C).Based on its white LED backlight.This model is recommended for industrial use.

    Matched Resistive touch and capacitive touch available.also we have matched HDMI driver board and touch screen.
    BOE 18.5inch lcd screen DV185WHM-NM1 with resolution 1366x768 and brightness 250nits.Cheapest 18.5 inch 1366*768 IPS BOE display DV185WHM-NM1 color tft lcd module for digital signage.


    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
