QV070WSM-N60-39P0

Size：

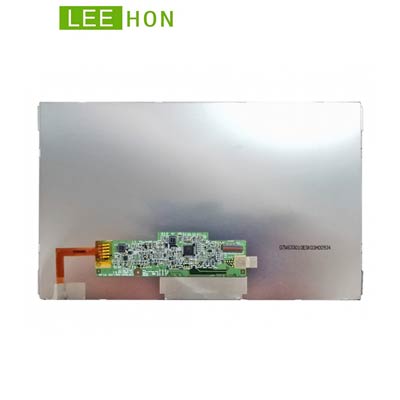

BOE 7 inch 1024x600 WSVGA TFT LCD Panel LVDS Display For smart home appliances QV070WSM-N60

  • QV070WSM-N60-39P0
  • Module No：QV070WSM-N60-39P0
  • Brand：BOE
  • Size：7 inch
  • Resolution：1024(RGB)×600 , WSVGA
  • Brightness：400 cd/m²
  • Viewing angle：80/80/80/80 (Typ.)
  • Interface：LVDS (1 ch, 8-bit) , 31 pins
  • CR：900 : 1
  • Operating Temp.: -20 ~ +60 (°C)

    • BOE 7 inch tft lcd panel QV070WSM-N60-39P0 with 1024(RGB)x600 WSVGA resolution, brightness 400 cd/m². This lcd display's working temperature is -20 ~ +60 (°C). Based on it's white LED backlight. This model is recommended for smart home appliances.

    Matched resistive touch and capacitive touch available. Also we have matched HDMI driver board and LVDS cables.
    Original 7 Inch 1024x600 WSVGA LCD Panel AUO TFT LCD Full View Angle Screen For smart home appliances QV070WSM-N60 with 400nits and 31 pins LVDS cables.

    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China
    mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class),
    PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold
    very well in North&South America, Western Europe and Southeast Asia.
    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
