G170ETN03.1

Size:

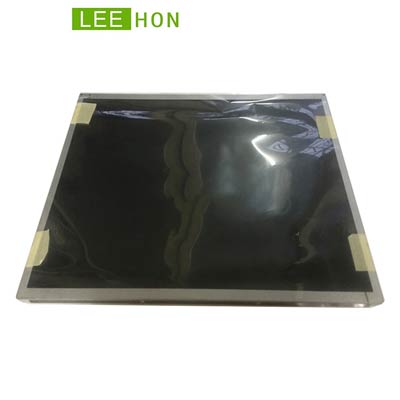

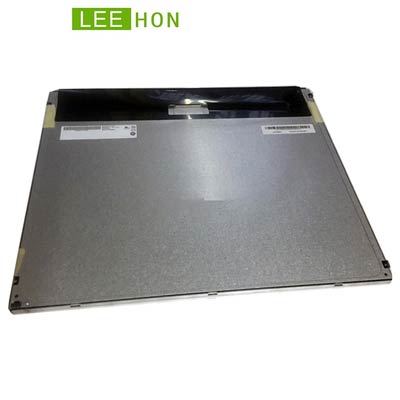

AUO 17 Inch 1280x1024 SXGA LCD Panel TFT 30pins LVDS Display For Industry G170ETN03.1

  • G170ETN03.1
  • Module No:G170ETN03.1
  • Brand:AUO
  • Size:17 inch
  • Resolution:1280(RGB)×1024 , SXGA
  • Brightness:400 cd/m²
  • Viewing angle:85/85/80/80 (Typ.)
  • Interface:LVDS (2 ch, 8bit) , 30 pins
  • CR:1000 : 1
  • Operating Temp.: 0 ~ +50 (℃)
  • AUO 17 inch tft lcd panel G170ETN03.1 with  1280(RGB)x1024 SXGA resolution, brightness 400 cd/m². This lcd display's working temperature is 0 ~ +50 (°C) and it's storage temperature is -20 ~ +60 (°C). Based on it's white LED backlight. This model is recommended for industrial use.
    Matched resistive touch and capacitive touch available. Also we have matched HDMI driver board and LVDS cables.
    Industrial 17 Inch 1280*1024 SXGA LCD Panel Original AUO 17" TFT Display G170ETN03.1 with 30 pins LVDS, 16.7M Color and 400nits.



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China
    mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class),
    PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold
    very well in North&South America, Western Europe and Southeast Asia.

    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
