G101EAN02.4

Size:

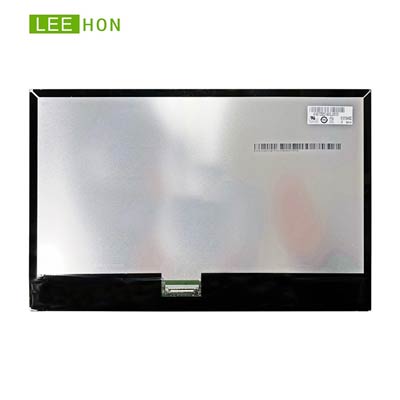

AUO 10.1 Inch 1280x800 WXGA LCD Panel TFT IPS Display G101EAN02.4 400nits, eDP 30 pins

  • G101EAN02.4
  • Module No:G101EAN02.4
  • Brand:AUO
  • Size:10.1 inch
  • Resolution:1280(RGB)×800 , WXGA
  • Brightness:400 cd/m²
  • Viewing angle:89/89/89/89 (Typ.)
  • Interface:eDP (1 Lane) , 30 pins
  • CR:800 : 1
  • Operating Temp.: -20 ~ +60 (°C)
  • AUO 10.1 inch tft lcd ips panel G101EAN02.4 with 1280(RGB)x800 WXGA resolution, brightness 400 cd/m². This lcd display's working temperature is 0 ~ +60 (°C) and it's storage temperature is -20 ~ +60 (°C). Based on it's white LED backlight. This model is recommended for industrial use.
    Matched resistive touch and capacitive touch available. Also we have matched HDMI driver board and eDP cables.
    Industrial 10.1 Inch 1280*800 WXGA LCD Panel Original AUO 10" TFT IPS Display G101EAN02.4 with Full xiew angle, 400 nits and eDP 30 pins.



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China
    mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class),
    PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold
    very well in North&South America, Western Europe and Southeast Asia.

    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
