G150XTN06.B

Size:

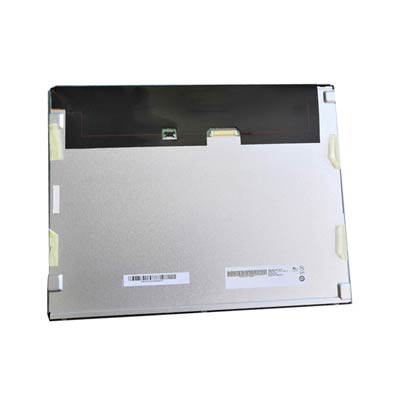

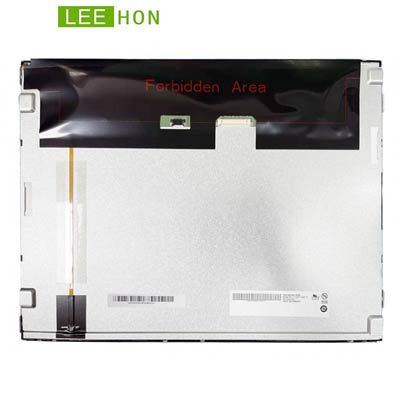

AUO 15 Inch 1024x768 XGA LCD Panel TFT High Brightness Display G150XTN06.B 800nits and LVDS 20pins

  • G150XTN06.B
  • Module No:G150XTN06.B
  • Brand:AUO
  • Size:15 inch
  • Resolution:1024(RGB)×768 , XGA
  • Brightness:800 cd/m²
  • Viewing angle:80/80/70/80 (Typ.)
  • Interface:LVDS (1 ch, 6/8bit) , 20 pins
  • CR:800 : 1
  • Operating Temp.: -30 ~ +70 (°C)
  • AUO 15 inch tft lcd panel G150XTN06.B with 1024(RGB)x768 XGA resolution, brightness 800 cd/m². This lcd display is working temperature is -30 ~ +70 (°C) and it's storage temperature is -30 ~ +80 (°C). Based on it's white LED backlight. This model is recommended for industrial and Outdoor highlight use.
    Matched resistive touch and capacitive touch available. Also we have matched HDMI driver board and LVDS cables.
    Industrial 15 Inch 1024*768 XGA LCD Panel Original AUO 15" TFT LCD Display For Outdoor Highlight G150XTN06.B with 800nits Sunlight Readable and 220 pins LVDS.



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China
    mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class),
    PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold
    very well in North&South America, Western Europe and Southeast Asia.

    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
