G140XTN01.0

Size:

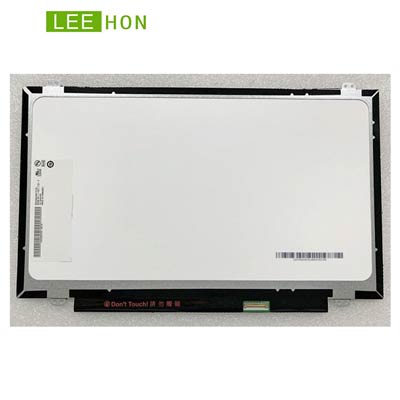

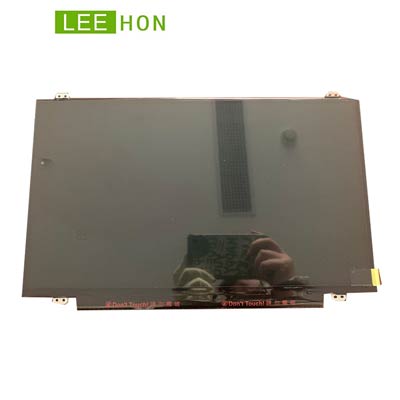

AUO 14 Inch 1366x768 WXGA LCD Screen TFT LCD Pannel For Industry G140XTN01.0 220nits and eDP interface

  • G140XTN01.0
  • Module No:G140XTN01.0
  • Brand:AUO
  • Size:14 inch
  • Resolution:1366(RGB)×768 , WXGA
  • Brightness:220 cd/m²
  • Viewing angle:45/45/15/35
  • Interface:eDP (1 Lane) , 30 pins
  • CR:400 : 1
  • Operating Temp.: 0 ~ +50 (℃)
  • AUO 14 inch tft lcd panel G140XTN01.0 with 1366(RGB)x768 WXGA resolution, brightness 220 cd/m². This lcd display's working temperature is 0 ~ +50 (°C)  and it's storage temperature is -20 ~ +60 (°C). Based on it's white LED backlight. This model is recommended for industrial use.
    Matched resistive touch and capacitive touch available. Also we have matched HDMI driver board and eDP cables.
    Industrial 14 Inch 1366x768 WXGA LCD Panel Original AUO TFT LCD Screen G140XTN01.0 with 220nits, eDP 30 pins and controller board.



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China
    mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class),
    PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold
    very well in North&South America, Western Europe and Southeast Asia.

    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
