G050TAN01.0

Size:

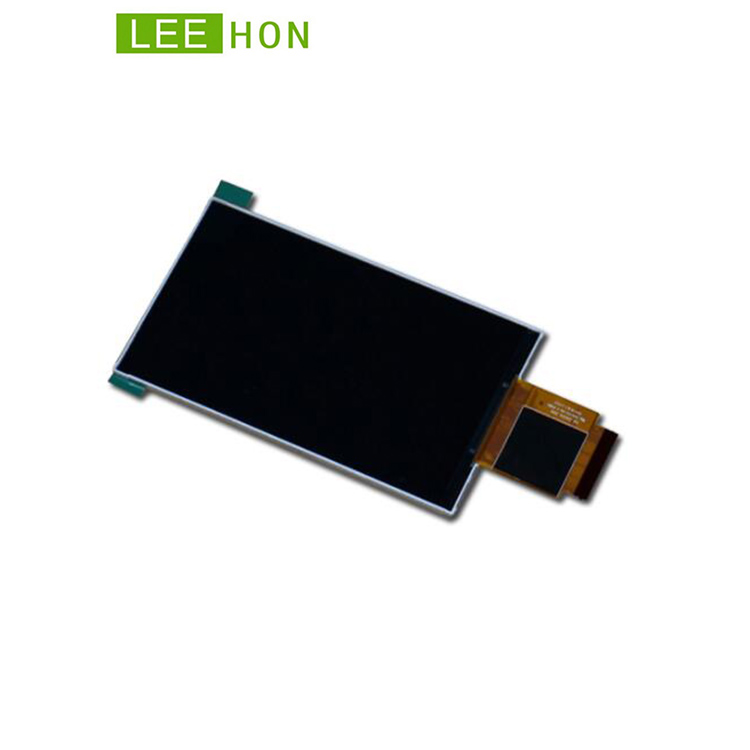

AUO 5 inch 720x1280 IPS TFT LCD Screen G050TAN01.0 with 570 nits and 30 pins MIPI

  • G050TAN01.0
  • Module No:G050TAN01.0
  • Brand:AUO
  • Size:5 inch
  • Resolution:720(RGB)×1280 , WXGA
  • Brightness:570 cd/m²
  • Viewing angle:89/89/89/89 (Typ.)
  • Interface:MIPI (4 data lanes) , 30 pins
  • CR:1000:1
  • Operating Temp.: -20 ~ +70 (°C)
  • AUO 5 inch tft lcd panel G050TAN01.0 with 720x1280 WXGA resolution , brightness 570 cd/m². This lcd display is working temperature is -20 ~ +70 (°C) and its storage temperature is  -30 ~ +80 (°C).Based on its white LED backlight.This model is recommended for industrial use.
    Matched Resistive touch and Capacitive touch available.also we have matched HDMI driver board and LVDS cables.
    Industrial 5 inch 720x1280 AUO IPS TFT LCD Screen G050TAN01.0 with 570 nits, 30 pins MIPI and driver board.



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
