G050VTN01.1

Size:

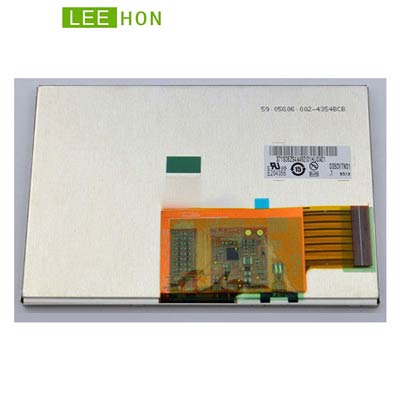

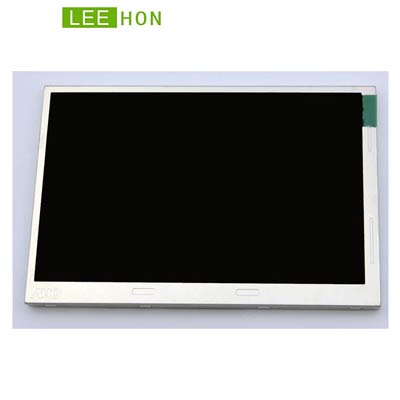

AUO 5 Inch 800x480 WVGA LCD Screen High Brightness Display G050VTN01.1 1000nits and TTL

  • G050VTN01.1
  • Module No:G050VTN01.1
  • Brand:AUO
  • Size:5 inch
  • Resolution:800(RGB)×480 , WVGA
  • Brightness:1000 cd/m²
  • Viewing angle:75/75/65/75
  • Interface:TTL (1 ch, 8-bit) , FPC , 40 pins
  • CR:600:1
  • Operating Temp.: -20 ~ +70 (°C)
  • AUO 4.3 inch tft lcd panel G050VTN01.1 with 800(RGB)x480 WVGA resolution, brightness 1000 cd/m². This lcd display's working temperature is -20 ~ +70 (°C) and it's storage temperature is -30 ~ +80 (°C). Based on it's white LED backlight. This model is recommended for industrial use and Outdoor Highlight.
    Matched resistive touch and capacitive touch available. Also we have matched HDMI driver board.
    Sunlight Readable 5 Inch 800x480 WVGA LCD Screen Original AUO TFT LCD Panel For Industry and Outdoor Highlight G050VTN01.1 with1000nits High Brightness and TTL 40pins.



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
