G101STN01.2

Size:

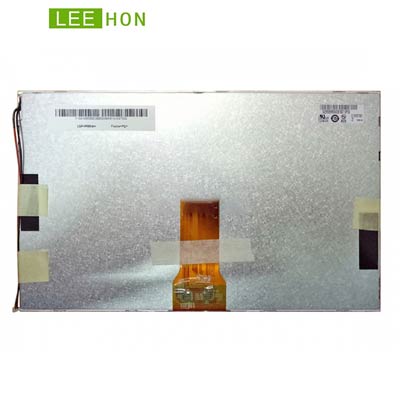

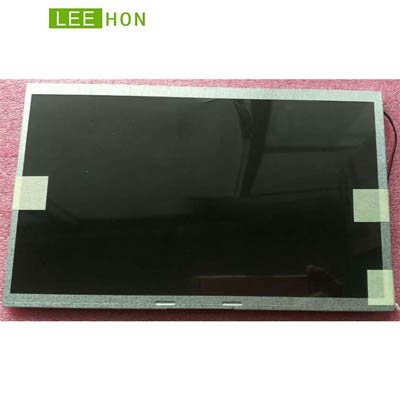

AUO 10.1 Inch 1024x600 WSVGA LCD Panel Screen For Industry G101STN01.2 350nits and TTL 50pins

  • G101STN01.2
  • Module No:G101STN01.2
  • Brand:AUO
  • Size:10.1 inch
  • Resolution:1024(RGB)×600 , WSVGA
  • Brightness:350 cd/m²
  • Viewing angle:70/70/60/60 (Typ.)
  • Interface:TTL (1 ch, 6/8-bit) , FPC , 50 pins
  • CR:500:1
  • Operating Temp.: -10 ~ +60 (℃)
  • AUO 10.1 inch tft lcd panel G101STN01.2 with 1024(RGB)x600 WSVGA resolution, brightness 350 cd/m². This lcd display's working temperature is -10 ~ +60 (°C)  and it's storage temperature is -30 ~ +70 (°C). Based on it's white LED backlight. This model is recommended for industrial use.
    Matched resistive touch and capacitive touch available. Also we have matched HDMI driver board.
    Industrial 10.1 Inch 1024*600 WSVGA LCD Panel Original AUO TFT LCD Screen G101STN01.2 with 350nits, TTL 50pins and Controller board.



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China
    mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class),
    PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold
    very well in North&South America, Western Europe and Southeast Asia.

    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
