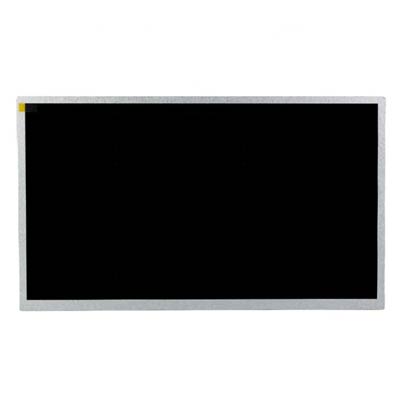

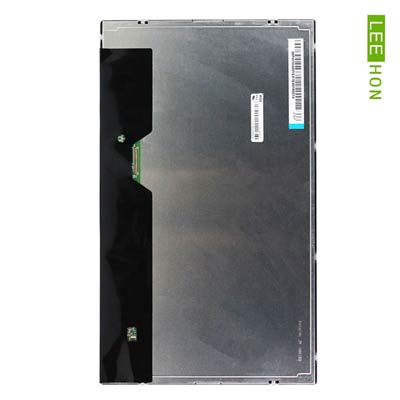

EV156FHM-N11

Your location： Home > Products > BOE > 15.6" >

Module No：EV156FHM-N11
Brand：BOE
Size：15.6 inch
Resolution：1920*1080 FHD
Brightness：500 cd/m²
Viewing angle：89/89/89/89(typ.)
Interface：LVDS (2 ch, 8-bit),40 pins
CR：800:1
Operating Temp.: 0 ~ 70(°C)

Parameters
Description

Manufacturer	BOE
Model Name	EV156FHM-N11
Screen Size	15.6 inch
Pixel Number	1920(RGB)×1080 FHD
Active Area(mm)	344.16(H)*193.59(V)
Outline(mm）	363.8(H)216(V)9.6(Typ)
Bezel Area(mm)	344.16(h)×193.59(v) mm
Luminance	500 cd/m² (Typ.)
Contrast Ratio	1200 : 1 (Typ.) (TM)
Viewing Angle	89/89/89/89(typ.)
Response	25 (Typ.) ms
Work Mode	Normally black
Color Depth	262K/16.7M , 50% NTSC
Backlight	30K hours,without LED Driver
Net Weight	850g
Touchscreen	without
Signal Type/interface Type	16.7M , 78% NTSC
Max. Ratings	Storage Temp.: -20 ~ 80 °C Operating Temp.:0 ~70 °C
Package	BOE Original package; 15 pcs / box

BOE 15.6 inch IPS lcd panel NVEV156FHM-N11 with 1920x1080 resolution.This screen is equipped with WLED backlight, including LED driver, backlight drive, no touch.
Its typical features are summarized as follows: sRGB, white LED backlight, service life of more than 50000 hours, including LED driver and surface fog.
This lcd model is used in medical imaging and other products.
good price and after-sell service make your business more easy.
contact us for detailed datasheet and offer please.

Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
We can supply total set of display solution:
TFT LCD screen + touch screen + controller board + cables + open frame.
stock for sale
long-time supply
no MOQ
in fulll range

Customization solutions
