G080UAN01.0

Your location: Home > Products > AUO > 8.0" >
  • G080UAN01.0
  • Module No:G080UAN01.0
  • Brand:AUO
  • Size:8 inch
  • Resolution:1200*1920
  • Brightness:500 cd/m²
  • Viewing angle:89/89/89/89 (Typ.)(CR≥10)
  • Interface:mipi
  • CR:1000:1
  • Operating Temp.: -10 ~ 60 °C
  • Parameters
  • Description
  • Manufacturer

    AUO

    Model Name

    G080UAN01.0

    Screen Size

    8

    Pixel Number

    1200(RGB)×1920   [WUXGA]

    Active Area(mm)

    107.64 × 172.224 mm (H×V)

    Outline(mm

    114.6 × 184.13 × 3.95 mm (H×V×D)

    Bezel Area(mm)



    Treatment

    Mirror surface

    Luminance

    500 cd/m² (Typ.)

    Contrast Ratio

    1000 : 1 (Typ.) (TM)

    Viewing Angle

    89/89/89/89(CR≥10)

    Left/Right/UP/Down

    Response

    27(Typ.)(Tr+Td) ms

    Work Mode

    AHVA, Normally black Transmissive

    Color Depth

    262K/16.2M , 60% NTSC

    Backlight

    20K hours,without LED Driver

    Net Weight

    80g (Typ.)

    Touchscreen

    without

    Signal Type/interface Type

    MIPI (8bit) , 45 pins

    Voltage Supply

    3.3V (Typ./Max.)

    Max. Ratings

    Storage Temp.: -20 ~ 70 °C

    Operating Temp.: -10 ~60 °C

    Package

    20 pcs/ carton

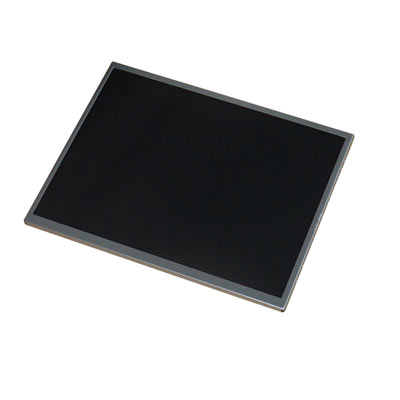

  • AUO 8 inch IPS lcd panel G080UAN01.0 with resolution 1200x1920 and 500nit brightness
    MIPI nterface ,easy for connection.
    very thin thickness  and good view angel  make it display good.
    Stable supply over 5 years, new and original quality ensured. fast delivery time.
